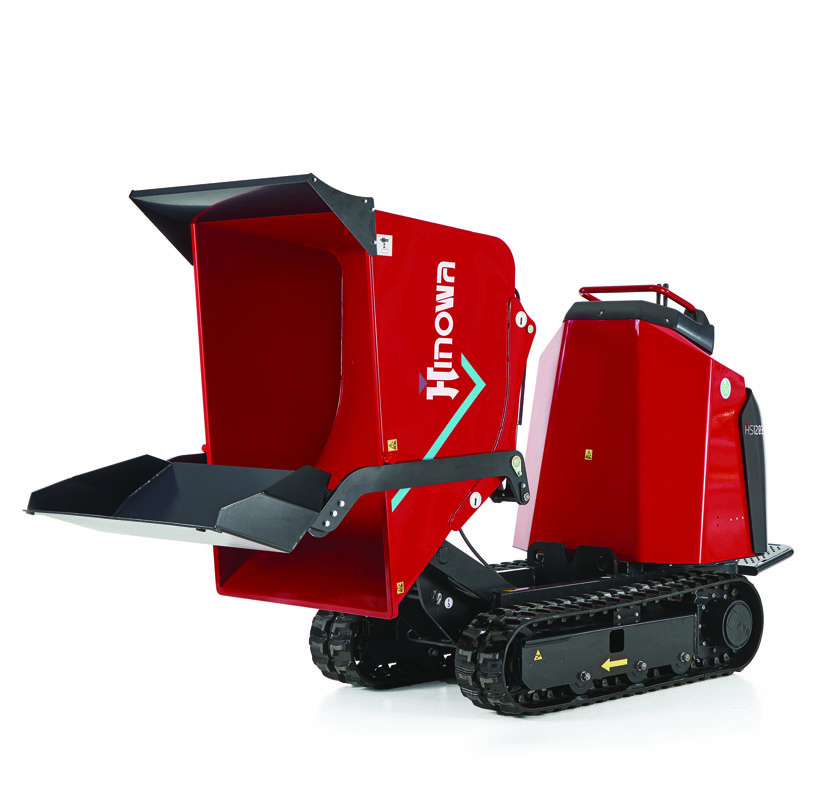

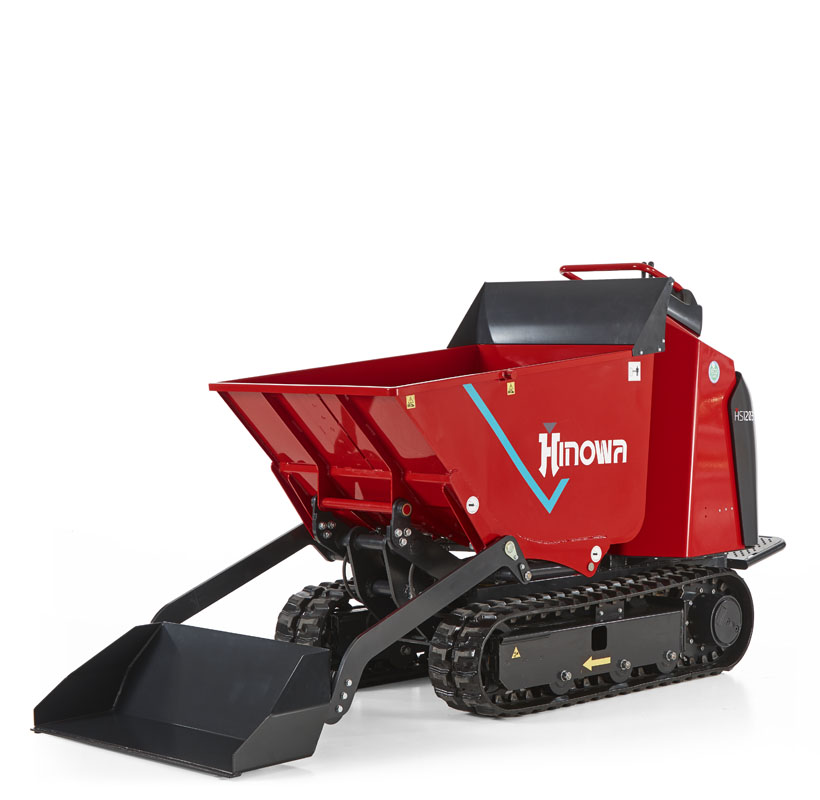

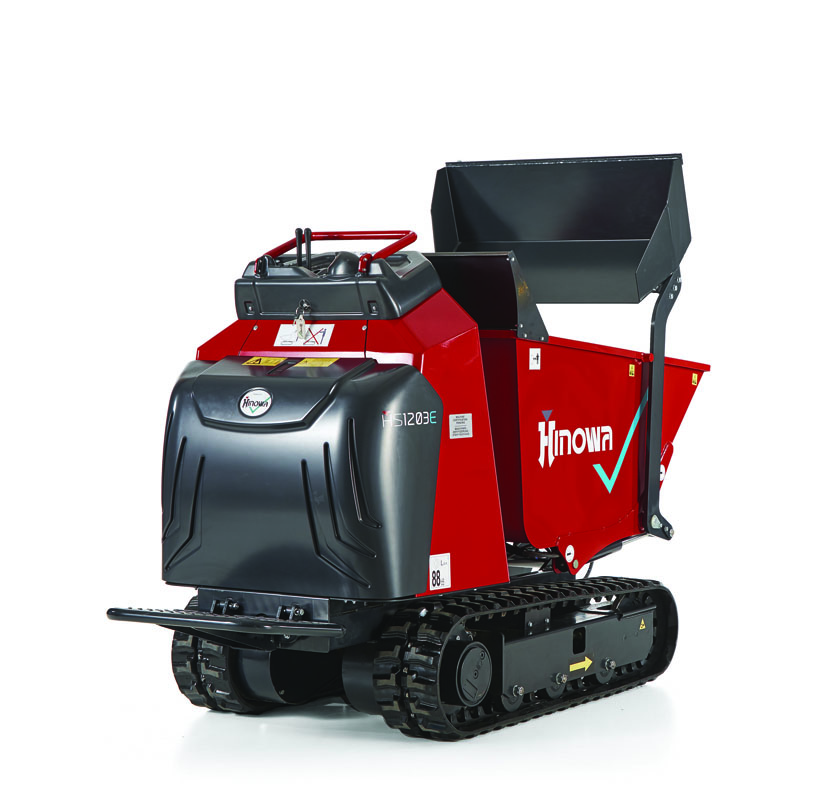

HS1203E Lithium-Ion
The HS1203 minidumper now also in the Lithium-ion version
Thanks to the new HS1203E minidumper fitted with a 15.3 kWh lithium battery pack, Hinowa is now able to satisfy the needs of customers who work in a broad range of different contexts, both indoors and outdoors: construction works, renovations, landscaping, work in tunnels, inside buildings or in historical city centres requiring low-emission machinery.Where should it be used?
The HS1203E minidumper with self-loading dump bed and electric traction offers multiple advantages, including the total absence of exhaust fumes and the possibility to work with reduced noise emissions. An extremely versatile machine which, thanks to Hinowa technology, can be used in different operating contexts such as:- Construction work
- Renovations
- Landscaping
- Work in tunnels
- farm transportation and works on rough, muddy, sandy and sloping terrain, where tyres risk sinking or losing grip.
What are the advantages?
The electric version of the HS1203 minidumper offers countless advantages in addition to multifunctionality, resistance and compactness thanks to the company’s ongoing investment in technological innovation, developing ever-more advanced and efficient machines:- The total absence of exhaust fumes, the possibility to work with reduced noise emissions (for example in historical city centres, residential areas or in buildings)
- High autonomy and rapid charging
- High load capacity, 1200 kg payload and 0.60 m³ dump bed capacity with self-loading system.
- High protection for the gearmotors used (P67 – 6=dust, 7=water). This high-level protection owing to the innovative electric traction motors with permanent magnets in place of the traditional hydraulic gearmotors, means the tracks can even cross water.
- Electrically powered tracks for lower power consumption
- Safe and easy-to-use control panel thanks to the ergonomic joysticks and “enable” sensor to prevent the operator from making accidental movements, as well as the possibility to choose between two speeds: “ecomode” to save energy on uneven surfaces and “power” on flat terrain.
What kind of professional figures is it aimed at?
The HS1203E minidumper with self-loading dump bed is particularly suitable for various professional figures. It is in fact an ideal and high-performance solution for professionals such as:- rental companies
- dealers
- private individuals
- gardeners
- nursery workers
- agricultural firms
- construction companies and restorers.
| Lithium-ion battery | 64V, 240Ah |
| Battery charge | 3 kW 80-300V |
| Recharging time | 8 hours (100%) |
| Number of drive motors | 2 |
| Type | 701C2E |
| Type distributor | mechanical |
| Track tensioner | grease |
| Track width | 230 mm |
| Rollers per side | 3 + slide |
| Fixed undercarriage | 990 mm |
| Translation speed | 4 km/h |
| Max. inclination | 15° (26,8%) |
| Capacity | 1.200 kg |
| Dumper bed capacity: rated volume (ISO 6483) | 0,60 m3 |
| Dumper bed capacity: struck volume | 0,49 m3 |
| Operating weight (without operator) | 1.050 kg |
-
- Features:
-

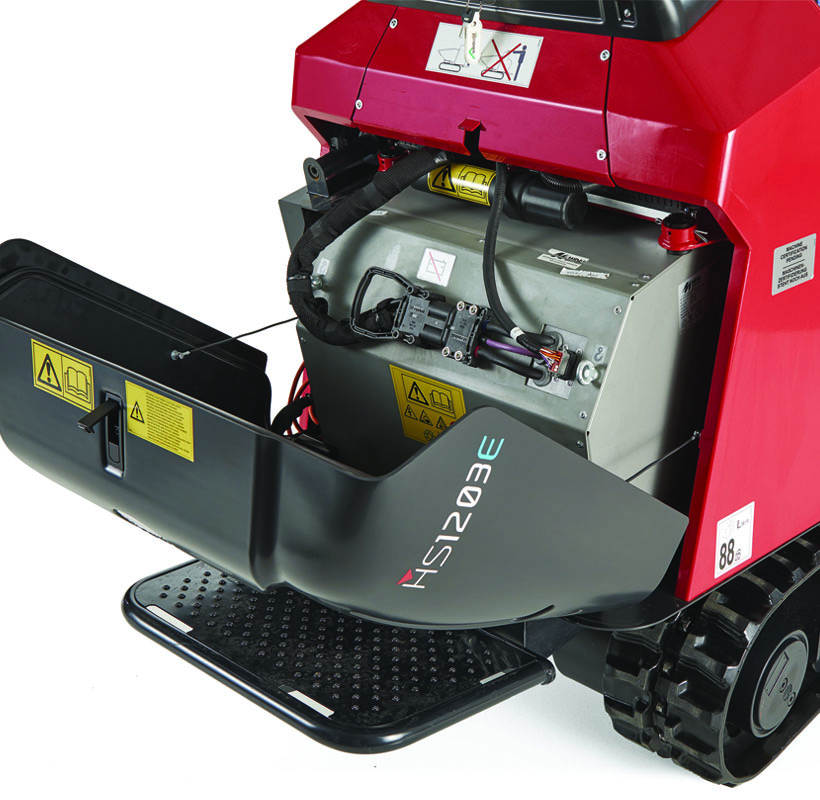

- 15.3 kWh lithium battery pack.
- Maximum capacity: 1,200 kg.
- Self-loading dump bed with 0.60 m3 maximum capacity.
- Modern-looking motor hood designed to optimize access to inspection and routine maintenance points.
- Innovative electric traction motors with permanent magnets.

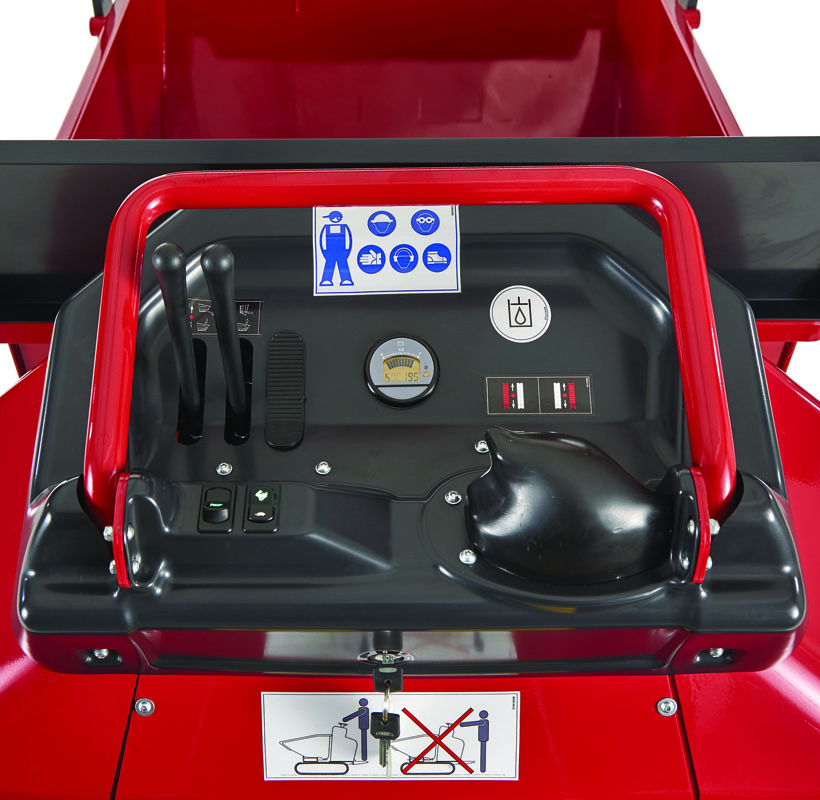

- Control panel with ergonomic joysticks and “enable” sensor to prevent the operator from making accidental movements.
- Safe driving thanks to the possibility to choose between two speeds: “ecomode” to save energy on uneven surfaces, and “power” on flat terrain.
- The rubber tracks are 230 mm wide and are able to reduce the ground pressure by decreasing the load on the base, as well as minimise damage to surfaces.
