Steel tracks
The ideal undercarriage for loads over 13 tonnes
Available on request with rubber pads, the undercarriage with steel tracks can be fitted on a variety of machines, replacing conventional wheels. The undercarriage can be used for heavy-duty work and for load capacities that exceed 13 tonnes.
Why use it?
The Hinowa team has always been committed to manufacturing and selling high-performance undercarriages with steel tracks which are produced using only carefully selected materials and highly technological components. Thus, using these undercarriages is a guarantee of a series of benefits mainly related to the following aspects:
- Long life and high reliability
- They make it possible for machines to travel over ground which would otherwise be inaccessible
What kind of machines can it be installed on?
To meet the needs of customers operating in different professional fields, Hinowa produces undercarriages with steel tracks for a variety of machinery. The sectors in which they are most widely used include industrial and agricultural sectors. In particular, they can be installed on machines such as those indicated below:
Industrial sector
- Machines for drilling or geological surveys
- Aerial platforms
- Cranes
- Transporters
- Harvesters
- Shredders
- Composting machines
What kind of professional figures has it been developed for?
Thanks to its extensive experience in the relevant sector, Hinowa designs and manufactures a wide range of tracked undercarriages for manufacturers of agricultural or industrial machines. Their use has also allowed professionals who have chosen Hinowa to boost the performance of the machinery they produce.
-
- Features:
-

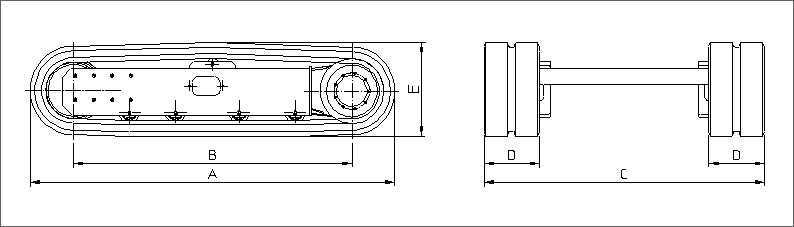

Model A B C D E MAX TOTAL WEIGHT
(COMPLETE MACCHINE INCLUDED UNDERCARRIAGE)mm EXCAVATOR/DUMPER TRANSPORTER WITH STABILIZERS
AERIAL PLATFORMS/CRANEkg kg kg PT15A 1416 1070 980 230 370 1500 1800 2000 PT1500A 1769 1417 1100 230 380 1800 2100 2500 PT20A 1769 1390 1100 230 380 2000 2300 3000 PT20AL 1902 1552 1100 230 380 2000 2300 3000 PT2000A 1739 1328 1100 230 424 2000 2300 3000 PT2500A 1817 1370 1220 250 497 2000 3000 4000 PT3000A 1972 1509 1520 300 494 3000 4000 5000 PT3000AL 2526 2067 1520 300 494 3000 4000 5000 PT4000A 2117 1650 1660 350 490 3500 4000 5500 PT70A33 2097 1582 1700 400 550 5000 6500 9000 PT70A35 2232 1527 1700 400 550 5000 6500 9000 PT70A39 2497 1983 1700 400 550 5000 6500 9000 PT70A43 2769 2254 1700 400 550 5000 6500 9000 PT70A45 2903 2389 1700 400 550 5000 6500 9000 PT100RA 2936 2360 2400 400 635 7000 10000 13000 PT150A 3235 2530 2400 500 763 10000 16000 24000
